Brief description

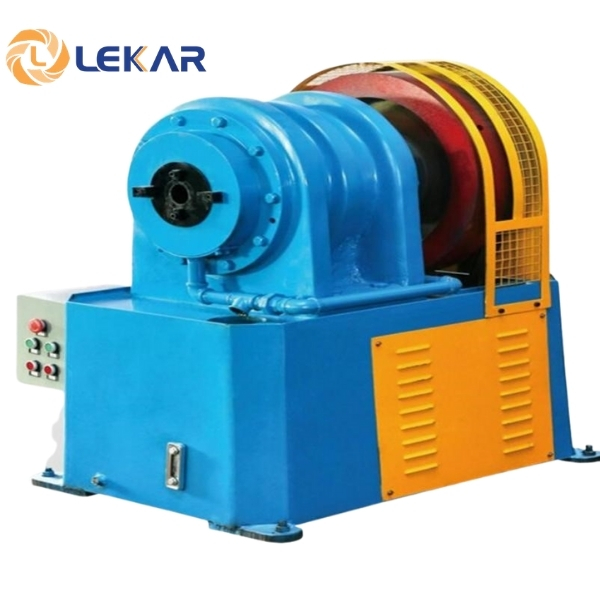

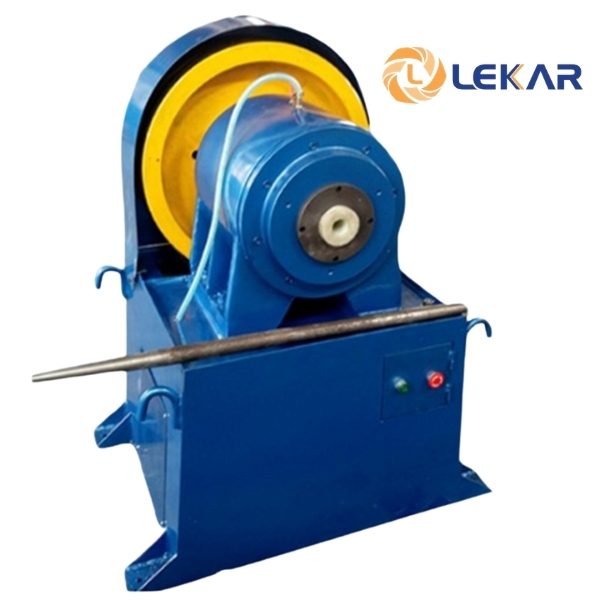

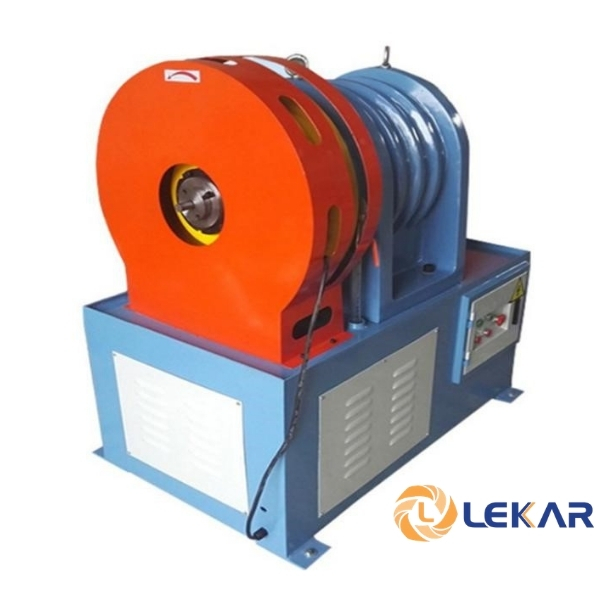

Taper shrink machine is a multi-purpose, high-tech new invention based on worldwide innovative technology. Taper shrink machine has moulds specialized for car/motorbike clutches and tubes with lumen of various radii.
Using taper shrink machines is a great method to cut down on cost, time, effort and improve efficiency at the same time.
Uses of taper shrink machine
– Taper shrink machine applies cold forging to shape tubular workpieces into cylinder and cone shapes.
– Taper shrink machine has a concealed lubrication system which ensures stability and long-term use.
– Taper shrink machine can integrate multiple moulds to work with workpieces of different shapes and sizes. Processed workpieces have bright, smooth and highly sustainable surfaces.
SPEC
| SPECS | Unit | JY-25 | JY-40 | JY-60 | JY-75 | JY-114 |
| Maximum tube length | MM | 200 | 300 | 350 | 400 | 500 |
| Maximum tube diameter | MM | 25*2.0 | 40*2.0 | 63*2.0 | 75*2.0 | 114*2.0 |
| Length per squeeze | MM | 1/2*25 | 1/2*40 | 1/2*60 | 1/2*75 | 1/2*114 |
| Lead time | s | 6~8 | 8~12 | 12~15 | 15~18 | 15~18 |
| Motor | KW | 2 | 3 | 5.5 | 11 | 15 |
| Oil pumping motor | HP | 1 | 1 | 2 | 3 | 4 |
| Moulds | Pieces | 4 | 4 | 4 | 4 | 4 |
| Cooling motor | W | 90 | 90 | 90 | 400 | 500 |
| Dimension | DxRxC | 1200*700*1200 | 1500*900*1400 | 3000*1300*1500 | 2200*1700*1700 | Customizable |
For more details on taper shrink machine as well as other polishing specialized machines and materials available at LEKAR Group, please contact:
LEKA Polishing Technology Joint Stock Company – LEKAR GROUP
Northern Office: CN2 Lot, Tu Liem Industrial Zone, Minh Khai Ward, Bac Tu Liem District, Hanoi.
Tel: 0243 7646469
Southern Office: D7 Road, KCN Nam Tan Uyen, Khanh Binh Ward, Tan Uyen Town, Binh Duong.
Tel: 02873 033386
Email: info@lekar.vn
