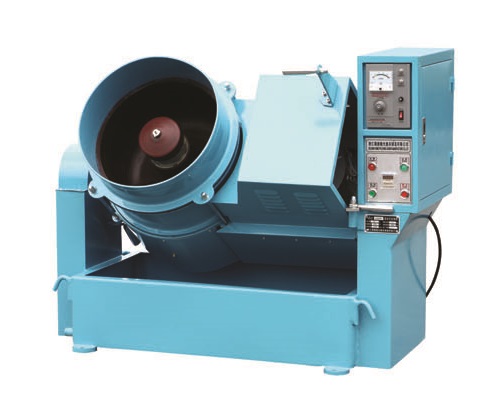

Overview on Centrifugal Polishing Machine LKH-LD
The Centrifugal polishing machine operates on centrifugal force to create friction between media, surface active preparations and workpieces that need to be processed. This is a specialized polishing machine that can meet various requirements and has easy-to-use, safe, effective operation.
Components
The Centrifugal polishing machine consists of a barrel, electrical cabinet, stand, disc, and separator (depending on the model). The barrel lining and disc are made of PU. An inverter and timer are integrated to help with controlling the speed and processing time. Customers may choose the model that offers automatic unloading or manual unloading (using a handwheel).
Outstanding Features

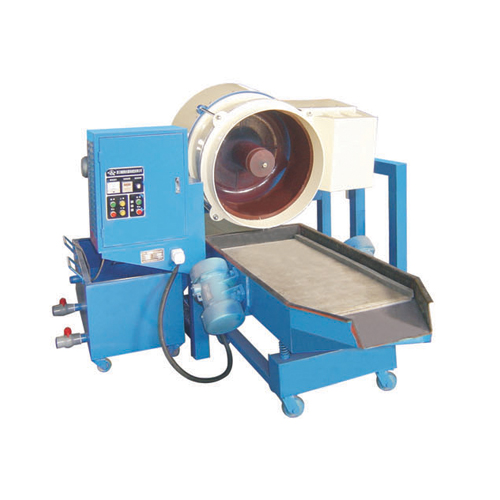

The Centrifugal polishing machine has a much higher speed than other types of polishing machines (which can be up to 10 times). Customers can also optimize their polishing processes by choosing models that come with separator and automatic unloading.
The machine can meet various polishing demands, from deburring, smoothing to polishing. Workpieces that can be best processed by this machine are small to medium-sized that have high requirements.
SPECS
| Model | Volume(L) | L x W x H (mm) | Motor (kw) | Weight (kg) | Speed (rpm) | Chamber A dimension(mm) | PU lining thickness (mm) |
| LDG 50A | 50 | 1390 x 700 x 1240 | 1.5 | 400 | 50 – 180 | 460 | 22 |
| LDG 50 | 50 | 1000 x 660 x 1120 | 1.5 | 300 | 50 – 180 | 460 | 22 |
| LDG 120 | 120 | 1740 x 900 x 1470 | 4 | 600 | 50 – 160 | 640 | 26 |
| LDG 230 | 230 | 120 x 1008 x 113 | 7.5 | 1100 | 0 – 140 | 800 | 30 |
| Model | Volume (L) | Motor (kW) | Speed(r/min) | Unload motor (kw) | Tilted degree | LxWxH (mm) | Weight (kg) |
| LDG 50S | 50 | 1.5 | 50 – 180 | 0.37 | 105° | 1230 x 750 x 1730 | 300 |
| Model | Volume(L) | L x W x H (mm) | Motor(kw) | Weight(kg) | Speed (rpm) | Chamber A Dimension(mm) | PU lining thickness(mm) |
| LDG 50AB | 50 | 1565 x 660 x 1300 | 1.5 | 450 | 50 – 180 | 460 | 22 |
| LDG 50B | 50 | 1010 x 660 x 1220 | 1.5 | 350 | 50 – 180 | 460 | 22 |
| LDG 120B | 120 | 1700 x 1380 x 1410 | 4 | 1100 | 0 – 160 | 640 | 26 |
| LDG 230B | 230 | 2450 x 1700 x 2000 | 7.5 | 2000 | 0 – 140 | 800 | 30 |
