3-Dimension Round Vibratory Polishing Machine LKH-PA

Name: 3-Dimension Round Vibratory Polishing Machine LKH-PA
Brand: LEKAR GROUP
SKU: 6084
Availability: InStock
Rating: 5 (1 reviews)

3-Dimension Round Vibratory Polishing Machine operates on the principle of 3-dimension vibration to polish metal workpieces.

View catalogue

Category: Công nghệ đánh bóng rung

Detailed information

Index

Overview on 3-Dimension Round Vibratory Polishing Machine

The 3-Dimension Round Vibratory Polishing Machine uses vibration to polish metal workpieces.

The 3-Dimension Round Vibratory Polishing Machine delivers strong levels of folding to increase polishing efficiency and limit the amount of media ejection.

Based on the characteristics, sizes and quantities of the workpieces, customers can either choose 3-Dimension Round Vibratory Polishing Machine LKH-PA or 3-Dimension Round Vibratory Polishing Machine with Separator LKH-LA to optimize the polishing procedures.

Components

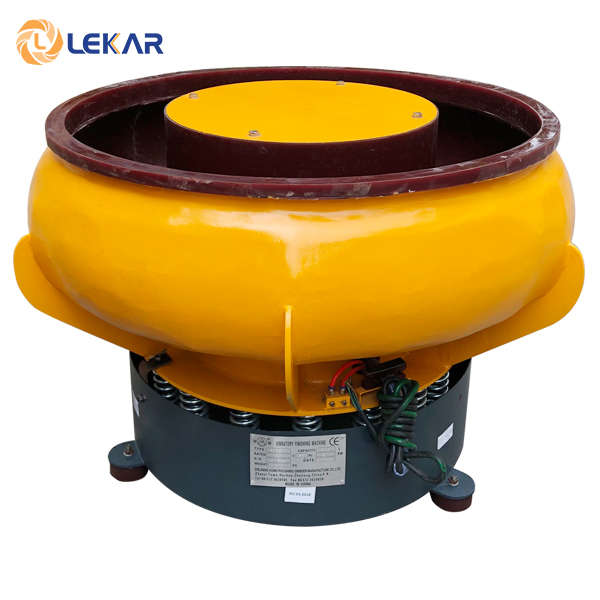

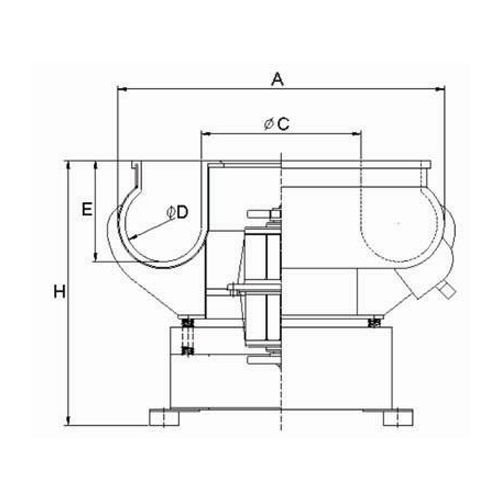

The 3-Dimension Round Vibratory Polishing Machine consists of a round working bowl that is placed on a set of springs, a motor that is attached to the bowl, and 2 eccentric hammers which deliver the rotation during operation.

Besides, The 3-Dimension Round Vibratory Polishing Machine with Separator LKH-LA also has a separator which assists in collecting workpieces upon process collection.

Principles of operation and uses

The machine operates by creating spiral translational motion and friction between polishing media and the workpieces. This machine can be used to process the surfaces of a variety of metals including copper, aluminum, zinc, stainless steel, etc.

The 3-Dimension Round Vibratory Polishing Machine can be used to deburr, smooth and polish metal surfaces. Deburring is the step where edgy corners and surface defects resulting from production are removed. Smoothing evens out the surfaces and makes the defects less noticeable. Polishing is the last step, in which the desired surface finish is conducted.

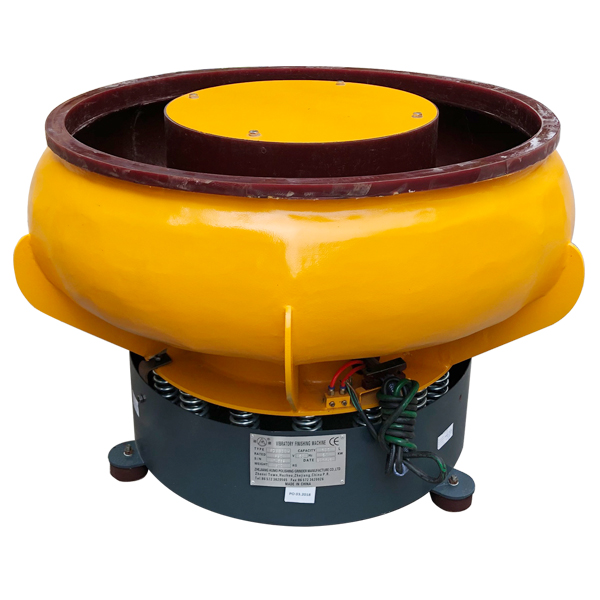

3-Dimension Round Vibratory Polishing Machine

Benefits of 3-Dimension Round Vibratory Polishing Machine

The 3-Dimension Round Vibratory Polishing Machine working bowl has large capacity and strong levels of folding, which increases the polishing efficiency and limits media ejection.

Besides, the machine is especially suitable for flat/sheet workpieces since these workpieces do not tend to get attached to the bowl wall.

The 3-Dimension Round Vibratory Polishing Machine LKH-PA is suitable for workpieces whose shapes and sizes require more working space to allow thorough exposure to polishing media. The 3-Dimension Round Vibratory Polishing Machine with Separator LKH-LA offers great assistance in collecting the workpieces upon process completion.
